Question:

Can a half rope be used as a single rope or twin rope?

Answer:

Dynamic ropes should be used in systems for which they have been designed and tested.

Explanation

Rope Classification

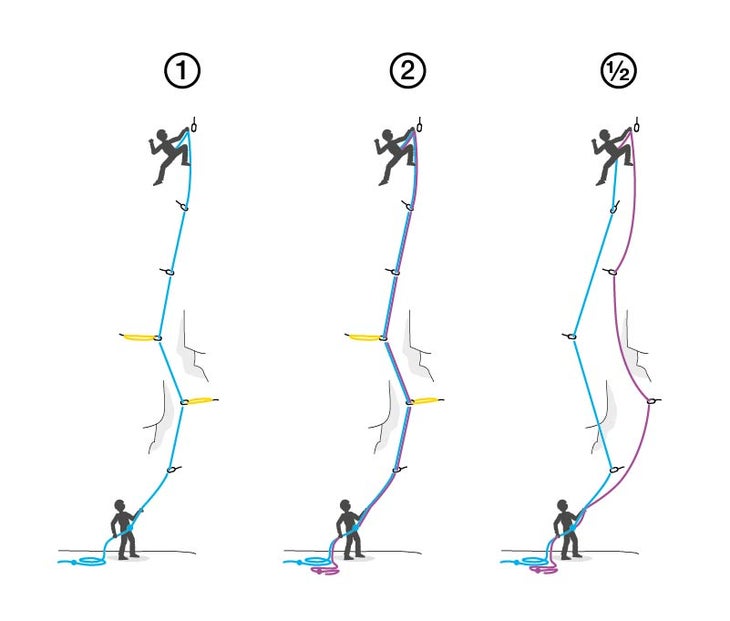

There are three international classification standards for dynamic climbing ropes--single, half, and twin—each suited to a particular style of climbing and terrain.


Single ropes are designed for use as a single strand and is clipped into every protection point along the route. A single rope system is primarily used on single-pitch climbs, moderate alpine terrain, and less complex multi-pitch routes.

Twin ropes are designed to be used in pairs with both strands being clipped together in every protection point. The twin rope system also facilitates longer rappels and provides redundancy in case one of the strands is cut or damaged by a falling object or sharp edge.

Half ropes are designed to be used in pairs, but each strand is clipped separately into alternating protection points throughout the route. A half rope system reduces rope drag on wandering routes, facilitates longer rappels, and provides redundancy on risky terrain.

Rope Class Certification

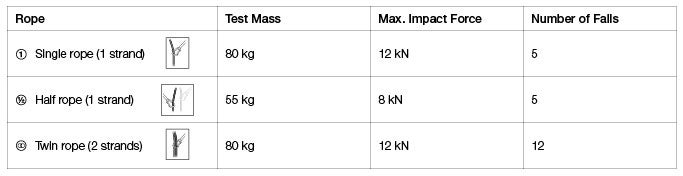

To be certified as a single, half, or twin rope, The UIAA requires that dynamic ropes pass a unique test for its respective classification:


Single ropes must withstand at least 5 falls with an 80 kg mass (176 lbs) on one strand, producing an impact force that is no higher than 12 kN.

Twin ropes must withstand at least 12 falls with an 80 kg mass (176 lbs) on two strands, producing an impact force no higher than 12 kN.

Based on the assumption that each strand in a half rope system will share some portion of the impact, half ropes must withstand at least 5 falls with a 55 kg mass (121 lbs) on one strand, producing an impact force no higher than 8 kN.

Dual & Triple Classification

Dynamic ropes are now being designed, tested, and certified with single, dual, or triple classifications, allowing them to be properly used in various systems. With a dual classification, a rope can be used in a twin or half rope system while a triple classification means that it can be used in a single, half, or twin rope system.

JONTE_HD-8926 (1).jpg

Summary

Half ropes are designed and tested to perform differently than single and twin ropes. All dynamic ropes should be used in systems for which they have been designed and tested. Using any rope outside of it's recommended application can dramatically increase the associated risks. Choose ropes and belay systems that are compatible with the route and style of climbing.

For additional info on this topic, visit PetzlSolutions.com/TechnicalSolutions.

Have a Question?

Submit your questions to our team of technical experts at solutions@petzl.com.

Technical Solutions are provided by the Petzl Technical Institute. The Petzl Technical Institute serves as a center for knowledge, discussion, and the creation of solutions for those who work or play in the vertical world.
